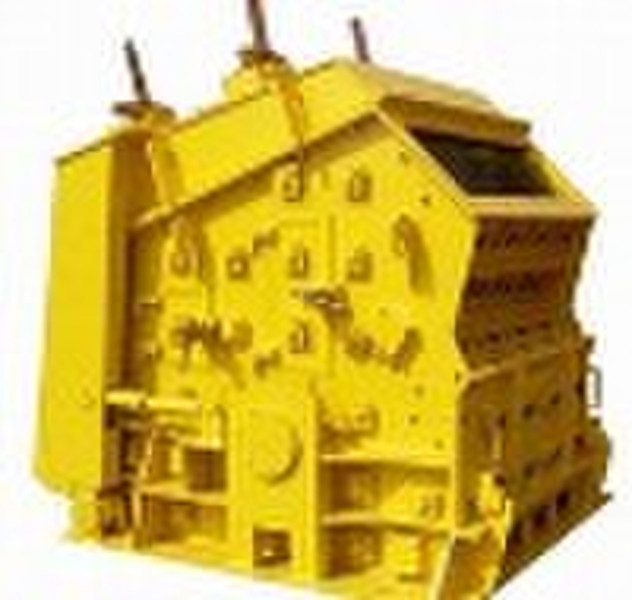

Impact Crusher

Detailed Production Description: Working Principle of Impact Crusher: When the impacter works, the motor drives the rotor rotate with high speed,on the rotor where installed the hammers. When the materials are feeded in to the machine,they are crushed due to the high speed impact of the hammer and then are thrown to the impact plates on the secondary rotor for secondary crush. Then the materials will be shot back to the hammers again for the third crush. This process repeats until the materials are crushed into the required size and discharged from ourlet. The main features of impact crusher: 1. Hammers with high chrom 2. Final product with cubical shape 3.Special impact plate 4.Easy maintenance 5.Reliable performance Model Specifications (mm)Feeder Opening(mm)Max. Feeding Size(m)mProduction Capacity (t/h) Power (kw)Weight (t)Product Size L x W x H (mm)PF-1007Φ1000×700400×73030030-7045122330×1660×2300PF-1010Φ1000×1050400×108035050-9055152370×1700×2390PF-1210Φ1250×1050400×108035070-13011017.72680×2160×2800PF-1214Φ1250×1400400×1430350100-18013222.42650×2460×2800PF-1315Φ1320×1500860×1520500130-250220273180×2720×2620
